Docker-compose安装kafka&kafdrop

• vicentz
• 0
• Posted on 2025年8月21日2025年8月22日

1. 创建目录和文件

结构:

.                                                                                                                                                                                                                                                                                       └── compose                                                                                                                                                                                                                                                                                 └── docker-compose.yml

2. 编写compse文件

version: '3.8'

services:
  zookeeper:
    image: docker.xuanyuan.run/confluentinc/cp-zookeeper:7.6.0
    container_name: zookeeper
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
    ports:
      - "2181:2181"

  kafka:
    image: docker.xuanyuan.run/confluentinc/cp-kafka:7.6.0
    container_name: kafka
    depends_on:
      - zookeeper
    ports:
      - "9092:9092"
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: PLAINTEXT:PLAINTEXT,PLAINTEXT_HOST:PLAINTEXT
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://kafka:29092,PLAINTEXT_HOST://localhost:9092
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: 1
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 1
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0

  kafdrop:
    image: docker.xuanyuan.run/obsidiandynamics/kafdrop:3.4.0
    container_name: kafdrop
    depends_on:
      - kafka
      - zookeeper
    ports:
      - "9000:9000"
    environment:
      KAFKA_BROKERCONNECT: kafka:29092         # ✅ 连接到 Kafka 容器
      ZOOKEEPER_CONNECT: zookeeper:2181        # ✅ 连接到 ZooKeeper 容器
      JVM_OPTS: "-Xms16M -Xmx48M -Xss180K -XX:-TieredCompilation -XX:+UseStringDeduplication -noverify"

3. 构建容器

docker compose up -d

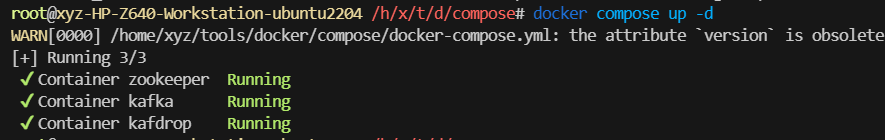

构建结果为:

查看容器状态:

docker ps

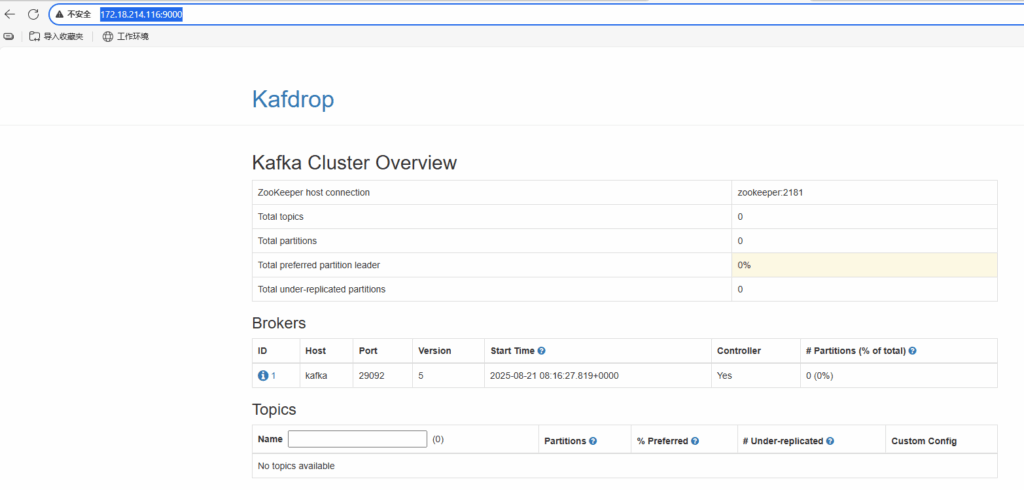

4. 访问宿主机

http://172.18.214.116:9000

至此安装完成
