RuoYi新建子模块

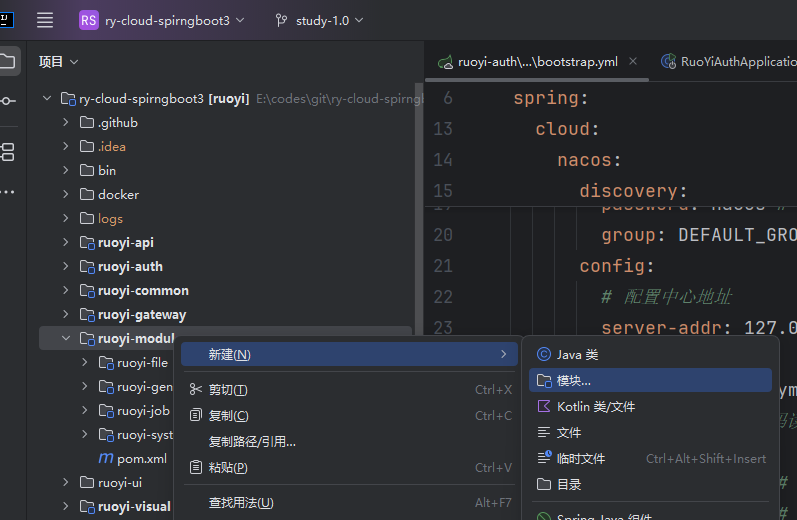

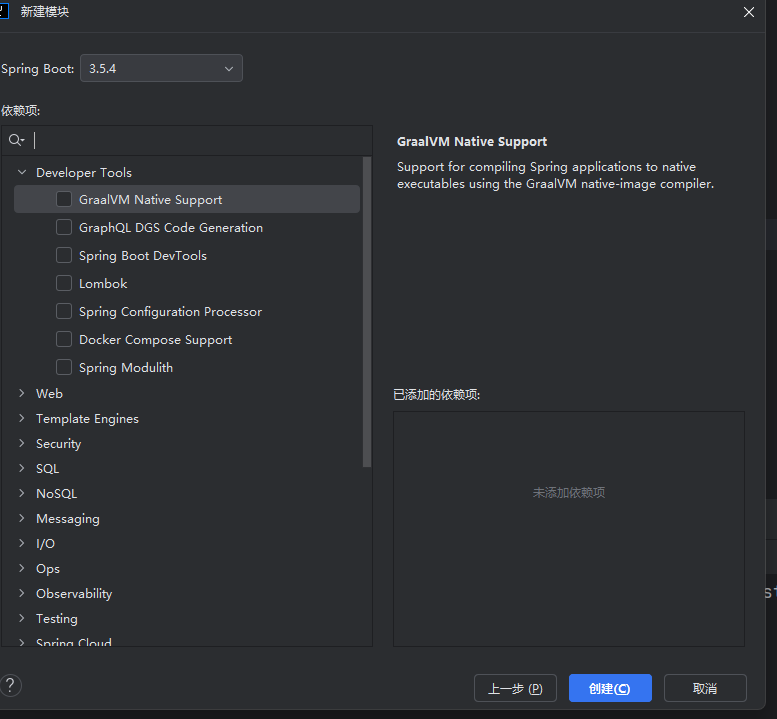

1. 新建模块

在ruoyi-modules下新建业务模块目录，例如：ruoyi-test。

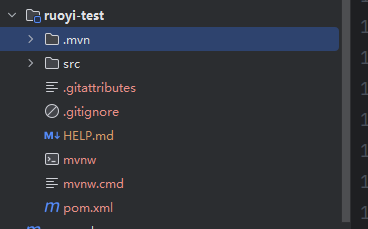

2. 删除无用文件

3. 修改pom文件

整体替换为如下


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.ruoyi</groupId>
        <artifactId>ruoyi-modules</artifactId>
        <version>3.6.5</version>
    </parent>
    <artifactId>ruoyi-test</artifactId>
    <description>
        ruoyi-test系统模块
    </description>
    <properties>
        <java.version>17</java.version>
    </properties>
    <dependencies>

        <!-- SpringCloud Alibaba Nacos -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>

        <!-- SpringCloud Alibaba Nacos Config -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>

        <!-- SpringCloud Alibaba Sentinel -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
        </dependency>

        <!-- SpringBoot Actuator -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!-- Mysql Connector -->
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
        </dependency>

        <!-- Ruoyi Common Security -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-security</artifactId>
        </dependency>

        <!-- Ruoyi Common Swagger -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-swagger</artifactId>
        </dependency>

        <!-- RuoYi Common Log -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-log</artifactId>
        </dependency>
        <!-- RuoYi Common DataSource -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-datasource</artifactId>
        </dependency>

        <!-- RuoYi Common DataScope -->
        <dependency>
            <groupId>com.ruoyi</groupId>
            <artifactId>ruoyi-common-datascope</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

4. 修改modules的pom文件

在ruoyi-modules目录下pom.xml模块节点modules添加业务模块

<module>ruoyi-test</module>

5. 修改yml

删除resources下的application.properties, 新建 bootstrap.yml:

# Tomcat
server:
  port: 59901

# Spring
spring:
  application:
    # 应用名称
    name: ruoyi-test
  profiles:
    # 环境配置
    active: dev
  cloud:
    nacos:
      discovery:
        # 服务注册地址
        server-addr: 127.0.0.1:8848
        username: nacos # 默认用户名
        password: nacos # 默认密码（如果修改过请替换）
        group: DEFAULT_GROUP
      config:
        # 配置中心地址
        server-addr: 127.0.0.1:8848
        # 强制使用UTF-8编码读取配置
        encode: UTF-8
        # 配置文件格式
        file-extension: yml
        username: nacos # 默认用户名
        password: nacos # 默认密码（如果修改过请替换）
        group: DEFAULT_GROUP
        # 共享配置
        shared-configs:
          - application-${spring.profiles.active}.${spring.cloud.nacos.config.file-extension}

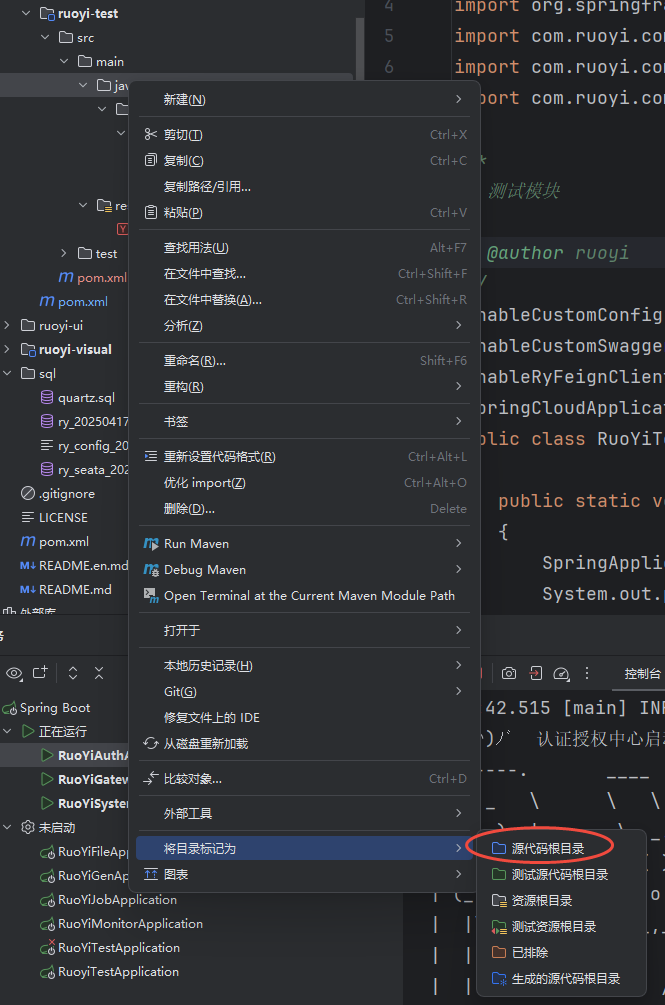

6. idea右键设置资源目录

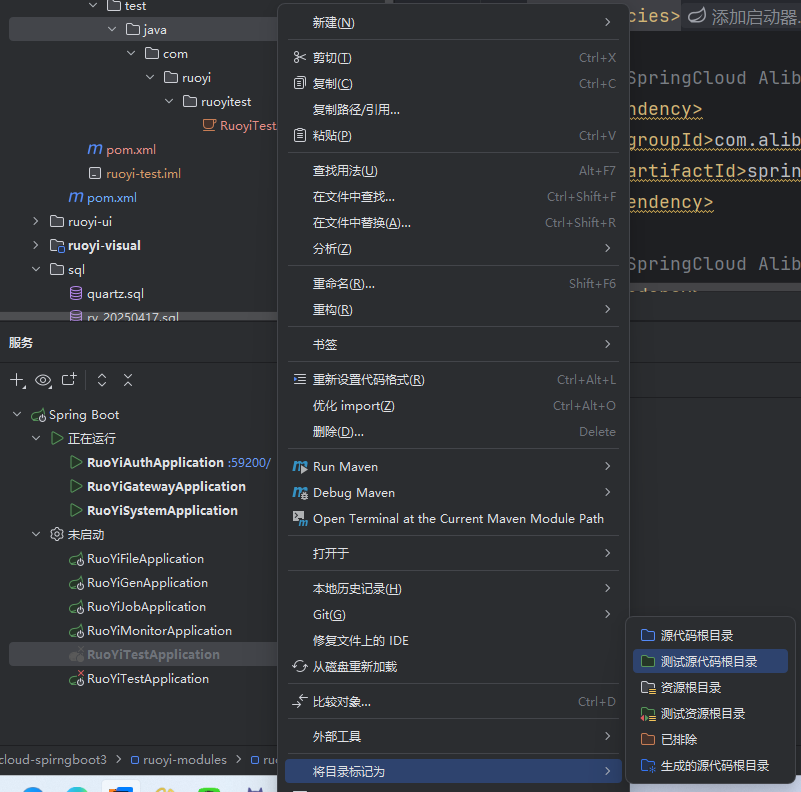

修改test的java为测试目录

删除RuoyiTestApplicationTests.java文件

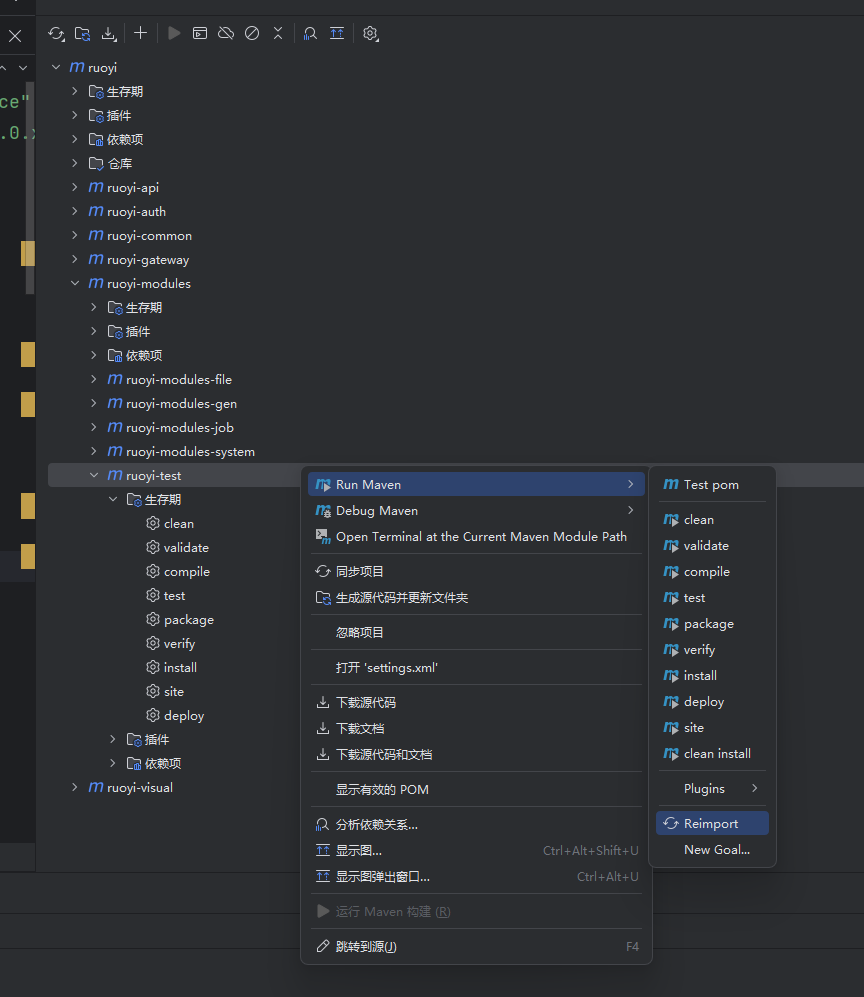

7. 对项目进行maven Reimport

8. 在nacos上创建yml配置文件

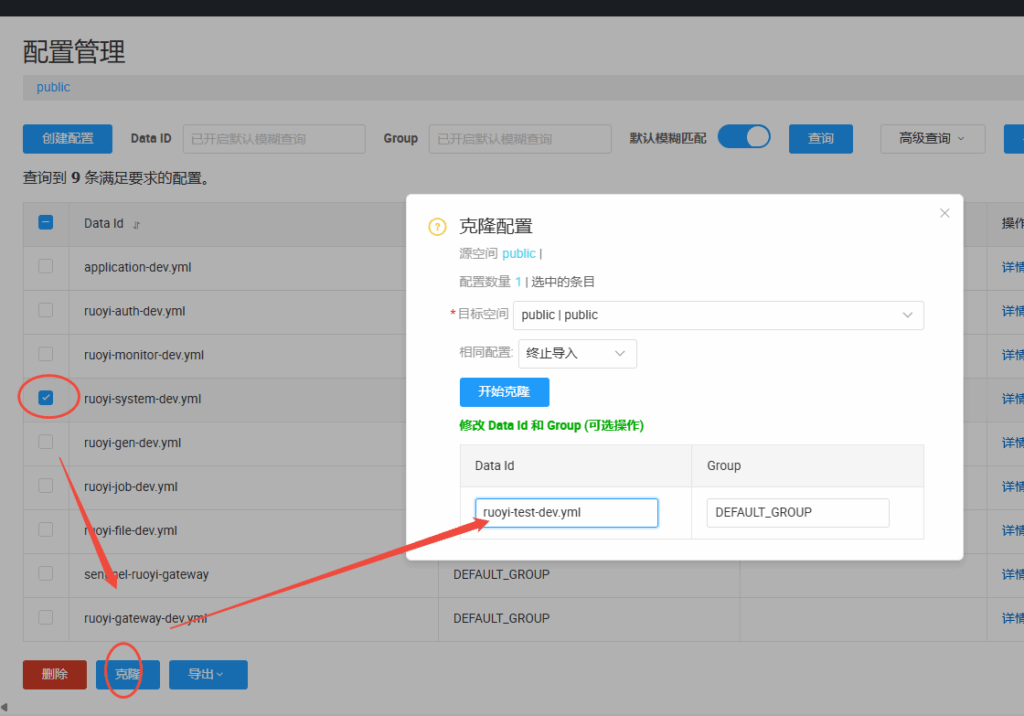

创建配置,直接克隆system配置:

编辑配置:

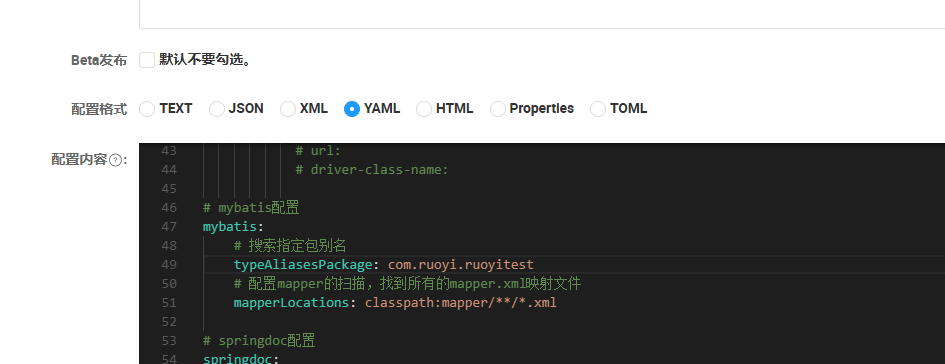

修改mybatis为:

9. 修改Application文件

修改文件名为:RuoYiTestApplication

内容修改为:

package com.ruoyi.ruoyitest;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import com.ruoyi.common.security.annotation.EnableCustomConfig;
import com.ruoyi.common.security.annotation.EnableRyFeignClients;
/**
 * 测试模块
 *
 * @author ruoyi
 */
@EnableCustomConfig
@EnableRyFeignClients
@SpringBootApplication
public class RuoYiTestApplication
{
    public static void main(String[] args)
    {
        SpringApplication.run(RuoYiTestApplication.class, args);
        System.out.println("(♥◠‿◠)ﾉﾞ  测试模块启动成功   ლ(´ڡ`ლ)ﾞ  \n" +
                " .-------.       ____     __        \n" +
                " |  _ _   \\      \\   \\   /  /    \n" +
                " | ( ' )  |       \\  _. /  '       \n" +
                " |(_ o _) /        _( )_ .'         \n" +
                " | (_,_).' __  ___(_ o _)'          \n" +
                " |  |\\ \\  |  ||   |(_,_)'         \n" +
                " |  | \\ `'   /|   `-'  /           \n" +
                " |  |  \\    /  \\      /           \n" +
                " ''-'   `'-'    `-..-'              ");
    }
}

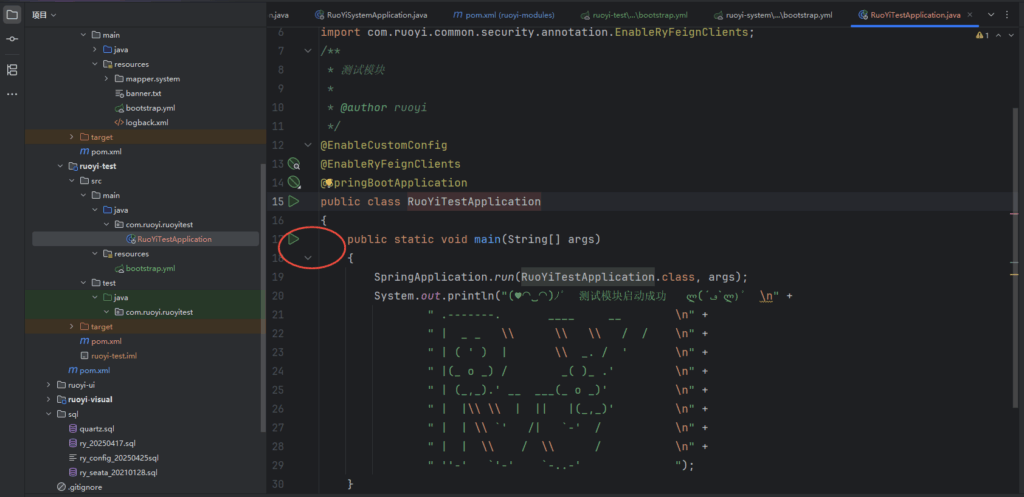

10. 启动服务

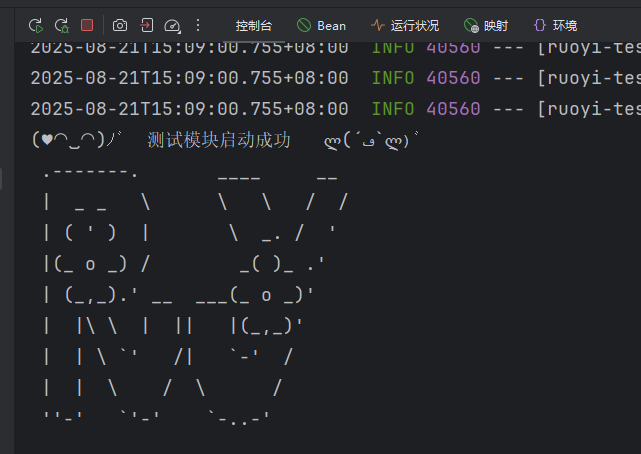

成功运行如下:

nacos也能成功查到该服务
